3. Tray

My partner and  I picked a piece of timber then use the bandsaw and sanding machine to make us a templet.

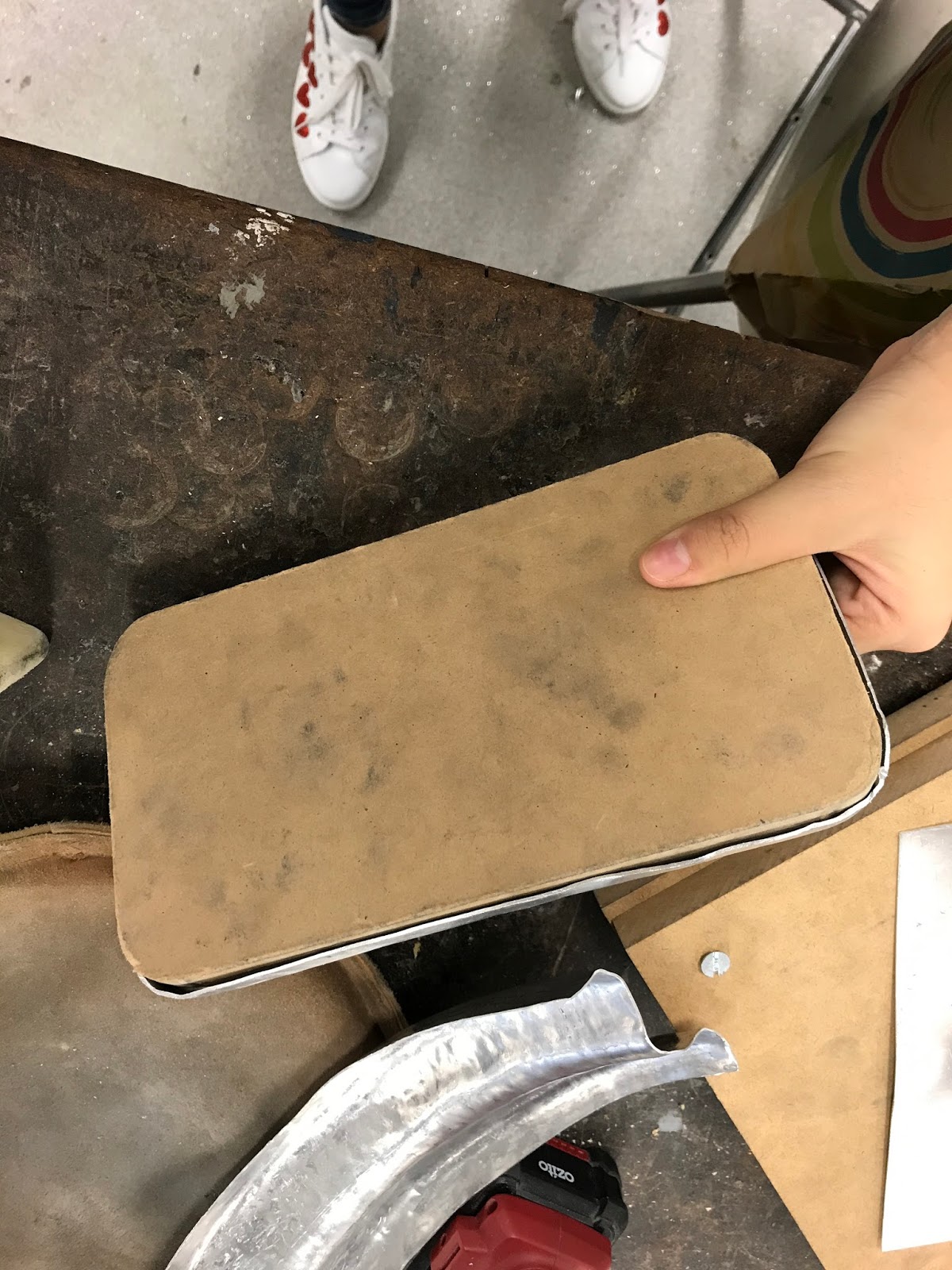

The timber templet (forgot to take photo right after I made it, this is the one I took while I was doing the tray, but you can still get the shape of what we made, which is a rectangle base with 4 rounded corner)
We placed the templet right in the centre of the sheet, and used the flat hammer to strike 4 edges folded 90 degrees.
Be careful of the 4 corners, they were really hard to make. Once you strike one side down, the other side will raise up. This step needs patience. Just strike gently and evenly on every spot it will become the shape you wanted.
After I have done the rudiment, I took the tray and templet off the clap. It was a bit un-flat on the base. I put it on the sand bag and hit on the templet to make it flat again.


This is basically what it looks like.



 Because we were using the same templet, my partner Shanshan's tray and mine are pretty identical.

I will keep this tray. It's handy. Can use it to organise my desk.😉
